Lace Curtained Window

PSP8 and PSP9 version

This tutorial was created 18th Sept. 2002©Copyright Artwork by EssexGirl
Updated for PSP8 and 9 8th March 2005
please do not copy it, or put it anywhere else without my written permission.

*NOTE*
Sometimes the links for filters change, it's difficult (and a lot of work) to
keep changing them on individual pages, so I have created a page with
links to filters and programs that I have used in my tutorials.
That way it is easier for me, because when there are changes I will
only have one page to update and hopefully better for you, because I'm
less likely to miss a page out when doing the updates :)

You will find links to filters/programs used in this tutorial Here
the link will open in a new window

Filters and programs used in this tutorial :-
Paint Shop Pro
Dragonfly's Sinedots II

Materials :-
There is a text file included in the zip, if you don't know where to place the items.
My sg_curtains.cfg Here
You will need one of my window frame tubes.
Click on the link Here and my window frames page will open in a new window.
You can choose from landscape or portrait style depending on the
shape of your image. Click the links to download.
I no longer have a link for the cats that I used to sit on my
window ledge, but you can use your own tubes

some images have been made smaller to shorten file size



Step 1.
Open a new Image 150 x 400 transparent.
Flood fill with black and add a new layer

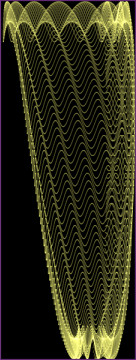

Go to Effects...Plugins...Sinedots...
Open the sg_curtains.cfg and choose
the frilly curtain preset
If you are new to sinedots and don't know how to open
the .cfg file click HERE for more information

If you have any problems downloading the sinedots preset
you can view the settings in a new window, by clicking Here

Some presets use different 'blend' settings and it is
important for this tutorial to make sure that the blend
in the sinedots setting is set to 'screen' like this:-





Step 2.
Go to Image...Canvas size...
Change the canvas size to 400 x 400
In the placement area choose the centre right box


Make the background layer active and flood fill with
black, then activate the sinedots layer again




Step 3.
Go to Layers...Duplicate...
then Image...Mirror...


Go to Layers...Merge...Merge Down...
Go to Image...Flip...

Next we are going to make a pelmet, so
save this image naming it curtains. You can
either close the image or minimise it for now.



Step 4.
Open a new Image 100 x 100 transparent.
Flood fill with black and add a new layer
Go to Effects... Plugins...Sinedots...
This time choose the 'cafe net' preset
you can view the settings in a new window, by clicking Here

As before make sure that the blend on the sinedots
setting is 'screen' before you click ok.
Because this image is small it's a little fuzzy
so go to Effects...Sharpen...and Sharpen...


Go to Image...Rotate...Rotate clockwise 90°




Step 5.
Go to Edit...Copy...(ctrl+C)
This image is no longer needed.
Open the curtains image that you made earlier.
Add a new layer then go to
Edit...Paste...and Paste as New selection...
positioning at co-ordinates 200,0 (you can see
these at the bottom left of the screen).




Step 6.
De-select.
Duplicate this layer 3 times and use the
Mover Tool to reposition the duplicates so
that they are side by side across the top


Turn off the visibility of the background
layer, by opening the layers palette and
clicking the 'Eye' on the layer to hide it.
Merge Visible. Duplicate the merged layer and
Merge visible again, this will thicken
the sinedots image.
Turn the visibility of the background back on.



Step 7.
Now we are ready to make the mask.
Go to Masks...New Mask Layer...From Image...
Choose your curtain image as the source window
and create mask from 'source luminance'
leave invert mask data unticked

Now go to Layers...Load/Save Mask...Save mask to Disk...
Give the mask a name, I called mine 'sinedots curtains'
not very original, but it is descriptive ;-)

Now that you have your sinedots curtains
mask saved you can close the image.



Step 8.
Open the image that you want to use as
the view from your window. Each of the pictures
used in this tutorial as the view from my window
are from freefoto.com




Step 9.
Open the window frame that you want to use
Go to Edit...Copy...
You can close the window frame image
With your 'view' image active, go to
Selections...Select All...(Ctrl + A)
Edit...Paste...Paste into Selection...De-select.




Step 10.
If you want to add some tubed ornaments or
something to sit on your window ledge add a new
layer place your tubes and when you are happy
with the positions Merge All layers.



Step 11.
Add a new layer
Flood fill with white or the colour you
want your curtains to be.
Go to Layers...Load/Save Mask...Load Mask from Disk...
Navigate to the folder that you put your
curtains mask in, and open the mask.

In the layers palette, right click on Group- Raster 1
and Merge...Merge Group...
If you want the curtains to be thicker
you can duplicate the layer.
Merge all




This tutorial was inspired by a
'Curtain Mask' tutorial by Sherrie
at Foxielane Thankyou Sherrie :)

I hope you enjoyed this tutorial.

I hope you enjoyed this tutorial.
